Chase County Sec. 24, T. 19 S., R. 7 E

North Elmdale section 7/11/1947

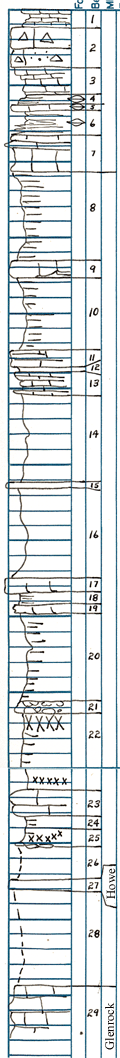

	Unit No. Description Thickness 1 Limestone - slabby; weathered 1.55 ft. 2 Limestone - pitted, brecciated. 2.4 ft. 3 Limestone - yellow; powdery 1.75 ft. 4 Shale - fusulines 0.8 ft. 5 Limestone - fusulines 0.4 ft. 6 Limestone - slabby; fusulines 1.5 ft. 7 Limestone - upper part is light gray and +/- slabby, lower part is massive and Osagia 2.5 ft. 8 Shale - yellow gray; blocky 6.1 ft. 9 Limestone - yellow gray; (irregular) 0.6 - 0.9 ft. 10 Shale - light gray; +/- flaky 5.9 ft. 11 Limestone - light gray; laminated. 1 ft. 12 Shale +/- 0.1 ft. 13 Limestone - light gray; platy; light gray to tan 1.3 ft. 14 Shale - ash gray; pelecypods in lower part. 6.15 ft. 15 Limestone - silty in lowerpart; mollusks 0.5 ft. 16 Shale - ashy gray 5.95 ft. 17 Limestone - shaly in lower part 1 ft. 18 Shale - gray 0.5 ft. 19 Limestone - brown-gray; Osagia 0.35 ft. 20 Shale - calcareous zone in upper part (0.4 feet from top); flaky; greenish gray. 6.35 ft. 21 Limestone - zone of limestone nodules in shale. 1 ft. 22 Shale - green with red zones at top and base. 4.75 ft. 23 Limestone - porlant cement; gray; silty 1.6 ft. 24 Shale - green-gray; flaky 0.7 ft. 25 Shale - red; calcareous zone at base. 1 ft. 26 Covered interval 2.65 ft. 27 Limestone - (Howe); yellow; granular; algal (?) 0.5 ft. 28 Covered interval 6.65 ft. 29 Limestone - (Glenrock) ? ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
