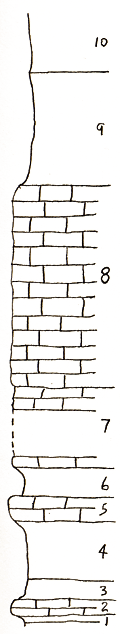

Stratigraphic section a few hundred feet S of the bridge in the Southwest section, near Elmdale
Measured By W.W. Bass, 1929
|
|
|
|
| Unit No. |
Description |
Thickness |
|
10
|
Greenish gray clay shale
|
6 ft.
|
|
9
|
Limey shale
|
11 ft.
|
|
8
|
Thick-bedded light buff, soft limestone, containing abundant tests of large Fusulines, and some other fossils
|
20 ft.
|
|
7
|
Covered; come limestone exposed
|
8 ft.
|
|
6
|
Limy shale
|
3 ft.
|
|
5
|
Light buff thick-bedded limestone, containing abundant large Fusulines and other fossils
|
2.5 ft.
|
|
4
|
Greenish clay shale
|
5.5 ft.
|
|
3
|
Very limy shale
|
2 ft.
|
|
2
|
Blocky gray dense limestone, contains abundant large Fusulines in upper part of bed. Peculiar markings on upper surface, lowermost 4 inches is massed with an assemblage of fossil shells (Americus? limestone member)
|
1.5 ft.
|
|
1
|
Tan and gray clay shale
|
1 ft.
|
|
