Chase County Sec. 17, T. 19 S., R. 8 E

Along Highway 50 West of Strong City Measured By H.G. O'Conner & J.M. Jewett, 7/31/1947

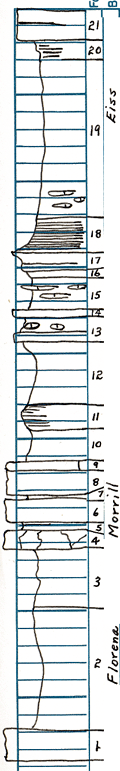

	Unit No. Description Thickness 21 Limestone - light gray; weathers ashy gray, and pitted; smaller pits in lower part; Derbyia, fragments of brachiopods & clams 1.95 ft. 20 Shale - yellow; locally weathers as shaly limestone 1 ft. 19 Shale - yellow and gray; limestone seams in lower part; transitional contacts above and below 9.1 ft. 18 Shale - black to dark gray in lower part; many fossils ranging up to near top: Chonetes, productids, bryozoans, Composita, Derbyia (collection) 2.1 ft. 17 Limestone - dark gray; slabby; fossils; lower part more resistant 1.2 ft. 16 Shale - dark gray; lenses of impure limestone; fossils: Chonetes 2.05 ft. 15 Same as above   14 Limestone - blue gray; nodular; clams 0.5 ft. 13 Shale - dark gray to black; limestone nodules; hard, brittle limestone in lower part 1.35 ft. 12 Shale - dark gray at top grading into light green 3.7 ft. 11 Shale - very limy; cream color; weathers into mass of small blocks 1.5 ft. 10 Shale - brownish gray; lenses of impure limestone 1.7 ft. 9 Limestone - gray; dense; conchoidal fracture 0.5 ft. 8 Limestone - yellow gray; massive crystalline; sparse fossil fragments 1.6 ft. 7 Shale - gray; limy 0.25 ft. 6 Limestone - slightly yellowish-brownish-gray; laminated, massive Osagia, coquina of fragments and micro fossils 1.5 ft. 5 Limestone - brownish gray; laminated 0.3 ft. 4 Limestone - or mudstone - gray; very irregular joints; clams 0.9 ft. 3 Shale - dark gray; contains calcite geodes in all but upper 2 feet 3.1 ft. 2 Shale - abundant fossils: Chonetes etc. 7.15 ft. 1 Cottonwood limestone.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
