Chase County Sec. 23, T. 19 S., R. 8 E

Jones Quarry East of Strong City, North of US 50 South Measured By R.C. Moore, J.M. Jewett, H.G. O'Connor, 7/9/1947

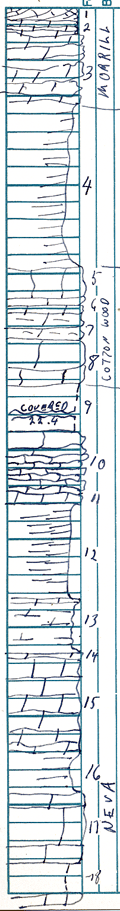

	Unit No. Description Thickness 1 Limestone, yellow-gray, slightly cross bedded 0.75 ft. 2 Limestone, brownish-yellow, weathers brown & gray 0.6 ft. 3 Limestone, yellow, weathers darker yellow, fibrous texture, clay fille cavities up to 6 inches long 3.8 ft. 4 Shale, gray 8.8 ft. 5 Limestone, light gray 4 ft. 6 Limestone, light gray   7 Limestone, light gray   8 Limestone, light gray, more or less nodular in lower part 2.4 ft. 9 Covered 22.4 ft. 10 Limestone, gray, weathers buff, crystalline, porous 3.5 ft. 11 Limestone, gray, crystalline, pitted 0.4 ft. 12 Shale, dark gray, grading downward into very dark gray 5.35 ft. 13 Limy shale, slabby limestone 2.95 ft. 14 Limestone 0.4 ft. 15 Limestone, buff, gray, weather buff, massive jointed porous bands of dense dove gray & silty layers, especially banded in lower part 5.1 ft. 16 Shale, brownish gray, weathers lighter gray 2.2 ft. 17 Limestone, light gray, ashy, weathers brown some nodules 3.8 ft. 18 Covered 2 ft. 19 Limestone, brown, dense, massive 0.85 ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
