Chase County Sec. 3, T. 20 S., R. 6 E

In quarry along road. Measured By H.G. O'Connor, J.M. Jewett, 8/1/1947

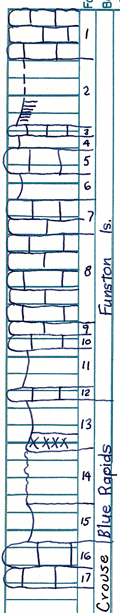

	Unit No. Description Thickness 1 Limestone, light gray to life buff, weathers somewhat platy, high and low gastropods and brachiopod casts. 3 ft. 2 Shale, yellow, clayey, top covered 3.75 ft. 3 Limestone, yellow, mottled gray, brachiopods 0.4 ft. 4 Shale, buff, hard, nodular, brachiopod fragments 1.1 ft. 5 Limestone, brown, mottled gray, very finely sandy, fossil fragments 1.15 ft. 6 Shale, green and black 1.8 ft. 7 Limestone, gray, clayey, no fossils 1.95 ft. 8 Limestone, very light cream and gray, a massive bed of coquina, limestone has high gastropods, and some small brachiopods. Also a few Osagia 4.7 ft. 9 Limestone, dense gray, clams, coquina of microfossils 0.6 ft. 10 Limestone, dense, gray, clams 0.65 ft. 11 Shale, mottled black and olive, no fossils 3.15 ft. 12 Limestone, gray to pink, faintly banded with specks of calcite, ostracods in base. (Algal limestone) 0.35 ft. 13 Shale, green, blocky, lower 1 foot red 2.8 ft. 14 Shale, green, nodular, limy, harder in upper part 3.1 ft. 15 Shale, light buff nodular, limy 2.15 ft. 16 Limestone, light gray, platy 1.65 ft. 17 Limestone, tan and gray, banded, silty to fine sandy 1.85 ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
