Chase County Sec. 17, T. 20 S., R. 8 E

Started 100 ft. north of south line of section 17 on US 177 south of Cottonwood Falls and went 1/4 mile into section 20 along road Measured By H.G. O'Connor & J. Parks, 8/12/1947

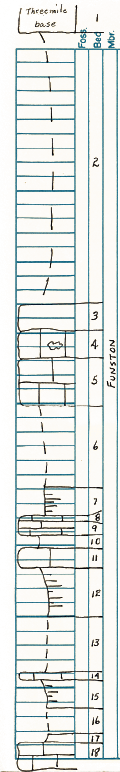

	Unit No. Description Thickness 1 Limestone - base of Three Mile   2 Covered 19.2 ft. 3 Mudstone - gray to light gray-blue; silty to limy; thin-bedded 1.75 ft. 4 Limestone - gray; mottled to banded; partly cherty. partly crystalline; fossil fragments; siltstone-like 2 ft. 5 Limestone - gray to buff; silty; thin uneven bedding 3.2 ft. 6 Covered 5.85 ft. 7 Shale - buff; thin-bedded; calcareous; abundant branching bryozoans, a few Derbya 2.05 ft. 8 Limestone - (or siltstone) gray; thin, uneven bedding 0.1 ft. 9 Limestone - (or siltstone) gray; partly crystalline; fossil fragments 0.6 ft. 10 Shale - buff; clayey; blocky to thin-bedded 0.3 ft. 11 Limestone - light buff gray; very fine grained with crystalline calcite irregular veins throughout; weathers buff 1.7 ft. 12 Shale - buff to olive; clayey to calcareous; thin, stringy bedding 3.85 ft. 13 Covered 3.55 ft. 14 Limestone - gray with buff clayey veins and tubules; very knobby bedding 0.45 ft. 15 Shale - olive green; finely blocky grading downward to thin calcareous, platy 1.95 ft. 16 Covered - including unit 15 4.1 ft. 17 Shale - light buff to light gray; impure; knobby 0.3 ft. 18 Limestone - buff to light gray; knobby bedded; impure 2.355 ft. 19 Shale - green; clayey 0.5 ft.
