Wabaunsee County Sec. 27, T. 11 S., R. 10 E

Interstate 70 roadcut on intersection with Kansas Highway 99 on south side of Interstate 70 Measured By Barry Perlmutter, July 1970

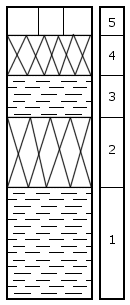

	Unit No. Description Thickness   Permian System -- Council Grove Group     Beattie Limestone     Morrill Limestone Member   5 Limestone, gray, massive, algal 2.2 ft. 4 Covered interval 3.1 ft.   Florena Shale   3 Shale, black, thin-bedded, with limestone lenses 3.2 ft. 2 Covered interval 5.0 ft. 1 Shale, black, thin-bedded, no megafossils 8.2 ft.   Total thickness of section 21.7 ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
