Wabaunsee County Sec. 18, T. 12 S., R. 13 E

Measured By R.C. Moore (M-513) and R.G. Moss (R-78) Remarks: Composite of both sections

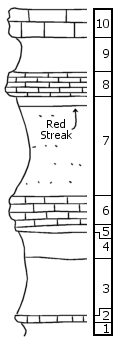

	Unit No. Description Thickness 10 Limestone, yellow, and light blue-gray 2.2 ft. 9 Shale, red 3 ft. 8 Limestone, lt yelh gr platy, granular, mealy, prom bench marker, prob = Ad 3 of Empire map 2.3 ft. 7 Gray to yellow-gray, slightly sandy shale 8.4 ft. 6 "Brownville" imp, brown, fossiliferous limestone; Marginifera, splen 2.5 ft. 5 Yellow-gray shale, Chonetes 0.5 ft. 4 Chocolate-red shale 2 ft. 3 Gray shale 5 ft. 2 Limestone, gray, imp, earthy 0.3 ft. 1 Shale
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
