Wabaunsee County Sec. 10, T. 14 S., R. 13 E

Along the road bordering section on the south about the middle of the mile Measured By R.E. O'Connor, Aug. 21, 1950 Remarks: Photo 70-A-5

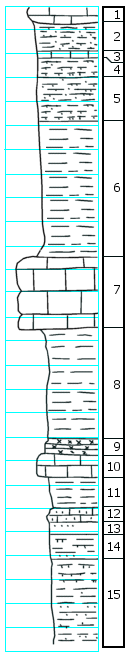

	Unit No. Description Thickness 1 Limestone, gray-brown, weathers light gray to nearly white; porcelaneous, fairly hard, massive, somewhat impure, grades into shale below; Yoldia, Leda, brachiopod fragments, high spired gastropods in upper part, Myalina in lower part; sandy to silty throughout; upper more massive part separated from shelly lower part by a green shale locally 0.65 ft. 2 Shale, green, micaceous, slightly sandy, poorly bedded to somewhat blocky, fossiliferous (ostracods?) 1.2 ft. 3 Limestone, green to gray-green, weathers yellow-brown ... very impure, sandy and micaceous, shaly, fossiliferous (ostracods?) grades into below; not continuous 0.1 ft. 4 Shale, green with some red, mottled, sandy, micaceous, poorly bedded, calcareous, some impure limestone pebbles, grades into red shale below 0.9 +/- ft. 5 Shale, red, sandy and micaceous, poorly bedded, calcareous in part, limestone pebbles, grades laterally between pure red and red and green mottled; grades into below 2.8 +/- ft. 6 Shale, blue-gray and yellow-brown mottled, some green, somewhat clayey, poorly bedded to somewhat blocky 5.7 +/- ft. 7 Limestone, brown, weathers brown to yellow-brown, hard, massive; horn coral, brachiopod fragments, crinoid stems, Composita, Hustedia, bryozoans, Osagia, Chonetes, Ambocoelia, Meekella   8 Shale, green to green-gray, poorly bedded, micaceous, calcareous especially near top, slightly sandy 4.7 +/- ft. 9 Siltstone, yellow, shaly in part 0.5 +/- ft. 10 Limestone, blue-gray, weathers brown to yellow-brown, hard, massive; Myalina, pelecypod fragments, Aviculopecten 0.8 +/- ft. 11 Shale, yellow-green, sandy and micaceous, some sandy limestone and some limestone pebbles of above limestone; grades into below 1.3 +/- ft. 12 Limestone, gray, slightly sandy, grades laterally and vertically between green shale and limestone, grades into below 0.7 +/- ft. 13 Limestone, green to gray-green, weathers nearly white, very sandy, micaceous, grades into shale below, massive, hard 0.35 +/- ft. 14 Shale, green to gray-green, sandy, micaceous, some sandstone, poorly bedded, calcareous, in part, grades into below 1.0 +/- ft. 15 Shale, yellow-brown, sandy and micaceous, calcareous, some limestone pebbles and nodules, poorly bedded, numerous discontinuities 3.5 +/- ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
