Wabaunsee County Sec. 12, T. 15 S., R. 11 E

Along road cut down hill to creek crossing Measured By H.G. O'Connor, Melville Mudge, Oct. 20, 1949 Remarks: Unusually thick Red Eagle limestone

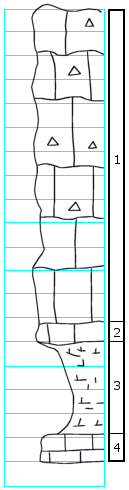

	Unit No. Description Thickness 1 Limestone, light gray to nearly white. Contains sparse chert nodules, mostly in middle and upper part. Also sparse crinoid, echinoid, and brachiopod fragments in upper and middle parts. Lower 3.0' contains sparse tabulate corals, fusulines, and fairly numerous cryptozoan type algae 13.2 ft. 2 Limestone, light gray-brown, continuous with above bed differing only in fossils and slightly in color. Contains very abundant reddish-brown chitinous fossil remains much of which is Orbiculoidea fragments and some of which may be conodonts? A few crinoid and brachiopods are present 0.7 +/- ft. 3 Shale, light gray, very calcareous in upper part, mottled darker gray and olive in lower part, calcareous. No fossils seen 3.9 ft. 4 Limestone, light tan to light gray-tan, hard; contains abundant fusulines. Not completely exposed. Exposed. 1.0 ft. - (Sink holes and Karst topography are developed in this thick Red Eagle limestone area)
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
