Wabaunsee County Sec. 16, T. 15 S., R. 13 E

Down road ditch on west side of sec. 16 in east road ditch to creek and in creek bank Measured By H.G. O'Connor, Oct. 1949 Remarks: Altimeter and direct top measurements

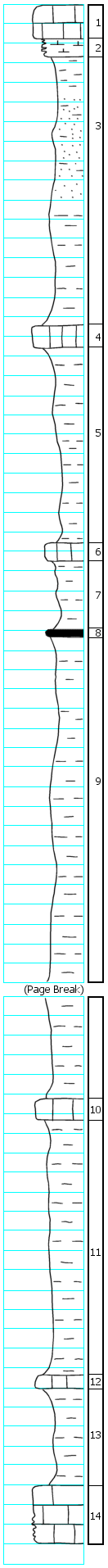

	Unit No. Description Thickness 1 Limestone, gray, weathers brown, hard, massive, contains crinoids, Chonetes, Dictyoclostus, fusulines, bryozoans 1.9 ft. 2 Shale, calcareous, gray 0.5 ft. 3 Shale, greenish-gray and tan, sandy micaceous in part 14 +/- ft. 4 Limestone, silty, gray, molluscan 1.0 +/- ft. 5 Shale, gray and buff 10.0 +/- ft. 6 Limestone, gray 0.8 +/- ft. 7 Shale 4 +/- ft. 8 Coal 0.1 +/- ft. 9 Shale, gray and buff, slightly sandy in places, limonite concretions in lower part 23 +/- ft. 10 Limestone, gray, weathers tan, very fossiliferous in upper part, brachiopods, crinoids, bryozoans, tiny fusulines 0.7 +/- ft. 11 Shale, partly covered, tan and gray 13.0 +/- ft. 12 Limestone, gray with reddish tan, weathers shelly, contains bryozoans, Myalina, Pinna, fusulines, crinoids, brachiopods 0.8 ft. 13 Shale, partly covered 5 +/- ft. 14 Limestone, gray green, fairly massive in upper part, shaly in lower part; contains fusulines, bryozoans, brachiopods, clams, and snails; exposed 3.0 +/- ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
