Dickinson County Sec. 18, T. 12 S., R. 4 E

2 1/2 mi. N of Chapman, center of eastern line Measured By M.K. Elias, 1932 Remarks: V-11

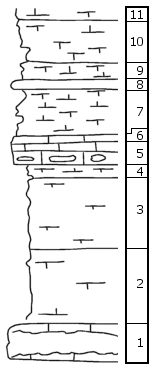

	Unit No. Description Thickness   Luta Limestone Member   11 Limestone, white, porous, with remains of seaweeds 0.5 ft. 10 Mudstone, splittery, harder toward the top 3 ft. 9 Mudstone, flaggy 1 ft.   Cresswell Limestone Member   8 Limestone 0.5 ft. 7 Limestone, flaggy to splittery, with echinoid remains 3.5 ft. 6 Limestone 0.5 ft. 5 Limestone, with zone of flint nodules below the middle 1.5 ft. 4 Mudstone, splittery, with Myalina and other pelecypods 0.8 ft.   Grant Shale Member   3 Shale, with net of calcite veinlets 5 ft. 2 Shale 5 ft.   Stovall Limestone Member   1 Limestone almost entirely replaced by flint 2.5 ft.
