Dickinson County Sec. 6, T. 14 S., R. 2 E

3 1/2 mi. SW of Abilene, S side of Smoky Hill River Measured By M.K. Elias, 1932 Remarks: V-9

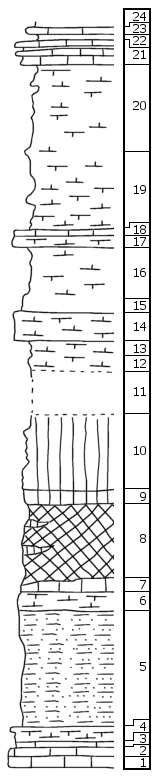

	Unit No. Description Thickness 24 Shale 0.4 ft. 23 Mudstone 0.1 ft. 22 Shale 0.5 ft.   Carlton Limestone Member   21 Mudstone, buff, splittery 2 ft.   Sand Springs Shale Member   20 Shale, yellow-hued gray, somewhat limy 6 ft. 19 Shale, gray, somewhat sandy and micaceous, splittery 5 ft.   Hollenberg Limestone Member   18 Limestone, gray 0.3 ft. 17 Limestone, white, soft 0.7 ft. 16 Shale, green to dark-blue 4 ft. 15 Shale, calcareous 0.5 ft. 14 Limestone, light-gray, geodes, small pelecypods at the top 2 ft.   Pearl Shale Formation   13 Shale 1 ft. 12 "Boxwork" 1 ft. 11 Covered 3 ft. 10 Shale, green, calcareous and splittery in upper and lower parts 5 ft. 9 Shale, green 1 ft. 8 Shale, maroon, in places changes to green in middle part 5 ft. 7 Shale, green 0.8 ft. 6 "Boxwork," green 1.2 ft. 5 Shale, light-green, banded, partly sandy and micaceous 8 ft.   Herington Shale Member   4 Mudstone, buff, splittery 0.8 ft. 3 Shale, gray 0.2 ft. 2 "Boxwork," yellow-hued gray 0.5 ft. 1 Limestone, yellow-hued gray, splittery 0.5 ft.
