Dickinson County Sec. 21, T. 16 S., R. 2 E

3 1/2 miles south-southwest of Elmo, Dickinson County, Kansas Measured By M.K. Elias, 1932

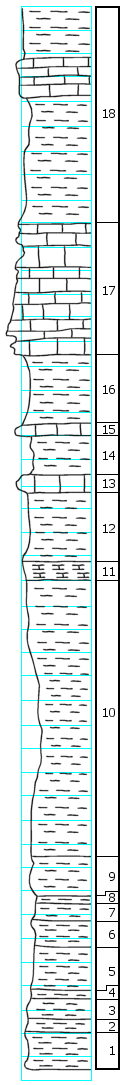

	Unit No. Description Thickness   Carlton Limestone Member   18 Shale, light gray, and limestone, harsh, shaly. Unfossiliferous, except for capping layer with Estheria 9 ft. 17 Limestone, chalky, light gray, argillaceous, thin-bedded. Fossil insects and land plants at the base 5.5 ft. 16 "Stump bed." Shale, black, with land plants. Bone conglomerate at the base 3 ft. 15 Limestone grading upwards into "bone conglomerate" 0.5 ft.   Buckeye Shale Member   14 Shale, dark gray 1.5 ft. 13 Limestone, bluish-gray, flaggy, crystalline 0.6 ft. 12 Shale, dark gray 2.6 ft. 11 Shale, calcareous, to mudstone 0.7 ft. 10 Shale, gray 11.6 ft. 9 Shale, red 1.8 ft. 8 Shale, dark gray 0.3 ft. 7 Shale, maroon 0.8 ft. 6 Shale, greenish-gray 1.1 ft. 5 Shale, dark gray 1.8 ft. 4 Mudstone, light gray 0.2 ft. 3 Shale, gray 1.0 ft. 2 Shale, red 0.5 ft. 1 Shale, dark bluish-gray 1.5 ft.
Original Document Download an archival scan (file is 4-5 megs in size). View PDF version The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop. To read the PDF version, you will need the Acrobat PDF Reader, available free from Adobe.
