Dickinson County Sec. 22, T. 16 S., R. 4 E

Winfield formation in cut of Highway 77, 1 mi W and 3 1/2 mi N of Herington, Kansas Measured By Condra and Upp (p. 53), 1931 Remarks: Section No. 22

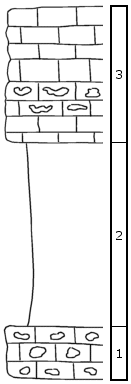

	Unit No. Description Thickness 3 Cresswell Limestone, gray, shaly and bedded at top; middle and lower portions more massive, geodal, and pitted, with a few small chert stringers; echinoid species common, also brachiopods and some pelecypods at base 9 ft. 2 Grant shale, gray, largely argillaceous, with some sandy limy aggregate 12.5 ft. 1 Stovall limestone, dark gray, very cherty, with shaly transition at top and bottom, fossiliferous 3.5 ft.
