Morris County

Sec. 36, T. 15 S., R. 7 E
Move to another county

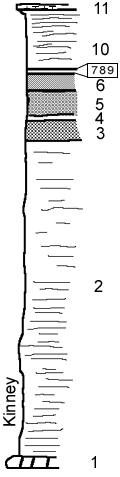

Unit No. Description Thickness
11 Limestone, shaly large gastropods, Schizodes, Derbia 6 in.
10 Shale, greenish gray 6 ft.
9 Shale maroon 3 in.
8 Shale green 3 in.
7 Shale maroon 2 in.
6 Shale brick red 1.5 ft.
5 Shale maroon 6 in.
4 Shale green 6 in.
3 Shale maroon purplish at base 2 ft.
2 Shale covered 32 ft.
1 Limestone Derbia Juresania (Kinney Limestone) 1 ft.

Original Document

The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
