From SW corner of Sec. 5 eastward along road to SW Sec. 3 where Annelly Gypsum is present along Highway 50S.
Measured By W.A. Ver Wiebe, 1936
Composite--Generalized section covering Sec. 3, 4, and 5. No Allowance for dip. Aneroid baometer.
|
|
|
|

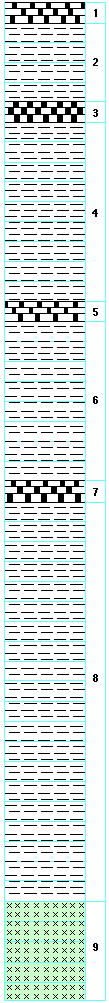

| Unit No. |
Description |
Thickness |
|
|
Walton Member
|
|
|
1
|
CLAYSTONE--very thin beds--white--calcareous--even bedded
|
2 ft.
|
|
2
|
CLAY--rather dark grat--weathers greenish
|
8 ft.
|
|
3
|
CLAYSTONE--like no. 1
|
2 ft.
|
|
4
|
CLAY--like no. 2
|
18 ft.
|
|
5
|
CLAYSTONE--like no. 1
|
2 ft.
|
|
6
|
CLAY--like no. 2
|
16 ft.
|
|
7
|
CLAYSTONE--like no. 1. Very prominent bench maker
|
2 ft.
|
|
|
Chisolm Creek
|
|
|
8
|
CLAY--greenish with thin hard layers
|
40 ft.
|
|
9
|
ANNELLY GYPSUM--very badley weatehrs outcrop in stream bank
|
10 ft.
|
|
