Geary County Sec. 7, T. 12 S., R. 6 E

One mile East of Junction City Measured By M.K. Elias, 1932
	Unit No. Description Thickness   Holmesville Shale Formation   101 Limestone, crystalline (secondary?) 2 ft. 100 Shale, calcareous to chalky   99 Mudstone, geodic 10 ft. 98 Limestone, splittery, with pelecypods 1.5 ft. 97 Shale, clayey 2 ft. 96 Mudstone, splittery, in 1 part pelecypods, Pleurophorus?, Orbiculoidea, and impressions of sea-weeds 4.5 ft. 95 Shale, calcareous, in 1 part with Derbya, pinna, and Straparollus 2 ft. 94 Mudstone, splittery; with Derbya and Linoproducts throughout; Composita, Allorisma, Pinna, and echinoid remains in 1 part 1 ft. 93 Shale, calcareous 0.5 ft.   Fort Riley Limestone Member   92 Limestone, massive, light-gray, with vertical flint veins at the top. Meekella at the top. Throughout the bed small and mostly fragmentary fossils among which can be recognized small crinoid joints, bryozoa, and spines of brachiopods 4.5 ft.   Oketo Shale Member   91 Shale, calcareous, with Ambocoelia and echinoid remains 0.5 ft. 90 Limestone, massive with Dictyoclostus and bryozoa, and with Allorisma at the base 2 ft. 89 Shale, calcareous, to mudstone, with Composita, Ambocoelia, Meekella, Bryozoa, Pelecypods, and Straparollus 5 ft. 88 Limestone, massive, with two flint bands in 1 part 1.7 ft. 87 Shale, calcareous 0.8 ft.   Florence Limestone Member   86 Limestone, massive, with two flint bands, Dictyoclostus, Derbya 0.8 ft. 85 Limestone, massive 0.9 ft. 84 Limestone, massive, with flint band near the top 1 ft. 83 Limestone, largely replaced by flint, with Dictyoclostus, Myalina, Meekella, and stony bryozoa 1.1 ft. 82 Shale, calcareous, with Composita, Derbya, Dictyoclostus 1.8 ft. 81 Limestone, massive, one band of flint near top; 1 half almost entirely replaced by flint 1.5 ft. 80 Limestone, with two bands of flint. Rhombopora in upper part 1.5 ft. 79 Shale, calcareous 0.5 ft. 78 Limestone, with thin band of flint near the top and thick band of flint at the base 1 ft. 77 Limestone 1.5 ft. 76 Limestone with four flint bands 2 ft. 75 Limestone with one flint band 1 ft. 74 Limestone with three thin flint bands in the middle and one heavier flint band at the top 3.2 ft. 73 Limestone, with thick flint band in the middle and thin flint bands a the the top and base 1.6 ft. 72 Limestone with two heavy flint bands. Rhombopora common 2.7 ft. 71 Limestone with two flint bands 0.8 ft. 70 Shale, calcareous 0.2 ft. 69 Limestone with six flint bands. The upper 3 heavier and distantly spaced, the 1 three thinner and close together. Triticites ventricosus and Rhombopora in the fifth flint band from the base and between the fifth and sixth bands 4.5 ft.   Blue Springs Shale Formation   68 Shale, calcareous 0.7 ft. 67 Mudstone, somewhat splittery 0.8 ft. 66 Shale, calcareous 0.5 ft. 65 Mudstone. In this and the two higher beds Dictyoclostus, Composita, and crinoid joints 0.8 ft. 64 Shale, calcareous 0.7 ft. 63 Mudstone, with Juresania, Derbya and pelecypods 0.4 ft. 62 Shale, dark-gray to black (bituminous) 0.3 ft. 61 Mudstone, gray, massive 1.9 ft. 60 Shale, green 6.5 ft. 59 Shale, red 1 ft. 58 Shale, green 0.5 ft. 57 Shale, red 1.1 ft. 56 Shale, green 0.6 ft. 55 Shale, maroon 1.5 ft. 54 Shale, green 0.3 ft. 53 Shale, maroon 1 ft. 52 Shale, green 1 ft. 51 Shale, dark-blue 0.5 ft. 50 Shale, red 0.3 ft. 49 Shale, green with two thin mudstone beds near the top and one near the base 4.7 ft. 48 Shale, maroon 1 ft. 47 Shale, green, with dark blue bands 2.5 ft. 46 Mudstone with Derbya, Composita, Juresania and Bryozoa 1 ft. 45 Shale, yellowish gray 3 ft. 44 Shale, dark bluish-gray, massive 6 ft. 43 Limestone, gray 0.7 ft. 42 Shale, gray, at the base calcareous with Juresania, Hustedia, and echinoid remains 8.5 ft. 41 Limestone, tough, buff, with Myalina and Aviculopecten at the top 1.6 ft.   Wymore Shale Formation   40 Shale 0.5 ft. 39 Mudstone 0.5 ft. 38 Shale, calcareous, splittery 1.5 ft. 37 Mudstone, yellowish gray, splittery 2 ft. 36 Shale, somewhat calcareous 1.8 ft. 35 Limestone 0.3 ft. 34 Shale, somewhat calcareous 3.4 ft. 33 Limestone, tough, gray, with small gastropods 0.3 ft. 32 Shale, green, calcareous in the middle 4.5 ft. 31 Shale, maroon 1 ft. 30 Shale, mottled, maroon and dark green 2.5 ft. 29 Shale, green 1 ft. 28 Limestone, gray, fossiliferous 2 ft.   Schroyer Limestone Member   27 Limestone with heavy flint band. Large Derbya at top 1 ft. 26 Covered 45.5 ft. 25 Limestone, tough, light-gray, cavernous, few fossils + 1 ft. 24 Shale, green 0.7 ft. 23 Shale, maroon 1.4 ft. 22 Shale, green, with maroon lens near the top 1.8 ft. 21 Shale, purple 1.1 ft. 20 Shale, green 0.5 ft. 19 Shale, purple 0.6 ft. 18 Mudstone, light-green 1.9 ft. 17 Shale, maroon 0.5 ft. 16 Mudsonte, light-green 2 ft. 15 Shale, green 6 ft. 14 Shale, calcareous, with Juresania and bryozoa 2 ft. 13 Shale, light-green, banded 6 ft. 12 Mudstone, greenish-gray 1 ft. 11 Shale, green 2.1 ft. 10 Shale, maroon 0.4 ft. 9 Shale, calcareous, bluish-green 0.7 ft. 8 Mudstone, light-green 1.8 ft. 7 Shale, calcareous, bluish-green 1 ft. 6 Shale, maroon 0.4 ft. 5 Shale, green 2.2 ft. 4 Sahle, gray, calcareous 1 ft. 3 Mudstone, gray, flaggy 3 ft. 2 Shale, calcareous, gray 1 ft. 1 Shale, black, splittery, with Orbiculoidea + 1 ft.

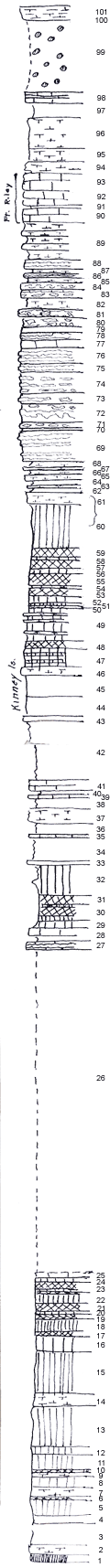

Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
