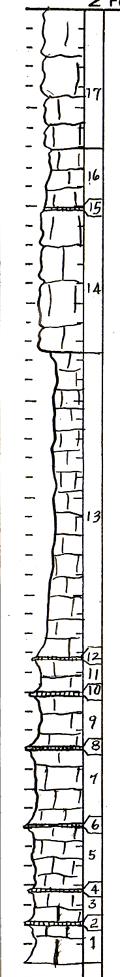

Section along Chalk Creek, North of area
Measured By H. Miller and E. Gutentag
|
|
|
|
| Unit No. |
Description |
Thickness |
|
|
Niobrara
|
|
|
17
|
Hard yellow chalk (rubbly)
|
7.5 ft.
|
|
16
|
Hard yellow chalk and gray chalk
|
2.6 ft.
|
|
15
|
Bentonite
|
0.025 ft.
|
|
14
|
Hard, light yellowish gray chalk
|
7.1 ft.
|
|
13
|
Gray chalk
|
15.9 ft.
|
|
12
|
Limonite and bentonite
|
0.25 ft.
|
|
11
|
Gray chalk
|
1.6 ft.
|
|
10
|
Limonite and bentonite
|
0.1 ft.
|
|
9
|
Gray chalk
|
2.5 ft.
|
|
8
|
Limonite
|
0.025 ft.
|
|
7
|
Gray chalk
|
3.5 ft.
|
|
6
|
Limonite and bentonite
|
0.1 ft.
|
|
5
|
Gray chalk
|
3.3 ft.
|
|
4
|
Limonite and bentonite
|
0.025 ft.
|
|
3
|
Gray chalk
|
1.6 ft.
|
|
2
|
Limonite and bentonite
|
0.1 ft.
|
|
1
|
Gray chalk
|
2 ft.
|
|
