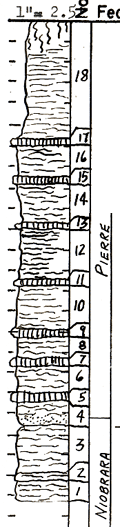

Measured By H. Miller and E. Gutentag
|
|
|
|
| Unit No. |
Description |
Thickness |
|
|
Pierre-Niobrara
|
|
|
18
|
Weathered zone
|
2 - 3 ft.
|
|
17
|
Gypsum
|
0.1 ft.
|
|
16
|
Shale - gray
|
0.9 ft.
|
|
15
|
Gypsum
|
0.1 ft.
|
|
14
|
Shale - gray
|
1 ft.
|
|
13
|
Gypsum
|
0.1 ft.
|
|
12
|
Shale - gray
|
1.2 ft.
|
|
11
|
Gypsum
|
0.05 ft.
|
|
10
|
Shale - gray
|
1.1 ft.
|
|
9
|
Gypsum
|
0.1 ft.
|
|
8
|
Shale - gray
|
0.4 ft.
|
|
7
|
Gypsum
|
0.05 ft.
|
|
6
|
Shale - medium light gray
|
0.8 ft.
|
|
5
|
Gypsum
|
0.05 ft.
|
|
4
|
Shale - light gray, local sand lenses at base; irregular contact (base of Pierre shale
|
0.6 ft.
|
|
3
|
Chalk - medium light gray (top of Nibrara)
|
1.1 ft.
|
|
2
|
Claystone - white
|
0.1 ft.
|
|
1
|
Chalk - gray, fresh color is grayish-black
|
0.5 ft.
|
|
