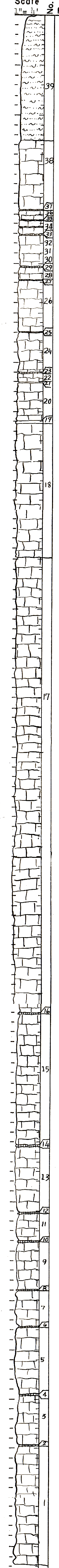

Western 1/2; East down gully from road
Measured By H.W. Miller
|
|
|
|
| Unit No. |
Description |
Thickness |
|
39
|
Loess
|
10 ft.
|
|
38
|
Chalk - light gray
|
5.5 ft.
|
|
37
|
Limonite
|
0.03 ft.
|
|
36
|
Chalk - light gray
|
0.75 ft.
|
|
35
|
Limonite
|
0.03 ft.
|
|
34
|
Chalk - light gray
|
0.25 ft.
|
|
33
|
Limonite
|
0.03 ft.
|
|
32
|
Chalk - light gray
|
0.9 ft.
|
|
31
|
Chalk - hard, gray
|
0.5 ft.
|
|
30
|
Chalk - gray
|
1.9 ft.
|
|
29
|
Bentonite - (fault - about 1 foot displacement)
|
0.03 ft.
|
|
28
|
Chalk - gray
|
1 ft.
|
|
27
|
Limonite
|
0.05 ft.
|
|
26
|
Chalk - yellow
|
4.1 ft.
|
|
25
|
Limonite
|
0.05 ft.
|
|
24
|
Chalk - yellow
|
3.2 ft.
|
|
23
|
Bentonite and limonite
|
0.05 ft.
|
|
22
|
Chalk - yellow
|
0.7 ft.
|
|
21
|
Bentonite
|
0.05 ft.
|
|
20
|
Chalk - yellow
|
3 ft.
|
|
19
|
Chalk - hard, yellow
|
0.2 ft.
|
|
18
|
Chalk - yellow
|
10.6 ft.
|
|
17
|
Chalk - gray
|
36.4 ft.
|
|
16
|
Bentonite and limonite
|
0.1 ft.
|
|
15
|
Chalk - gray
|
10.5 ft.
|
|
14
|
Limonite and bentonite (fault)
|
0.1 ft.
|
|
13
|
Chalk - gray
|
5.3 ft.
|
|
12
|
Bentonite and limonite
|
0.05 ft.
|
|
11
|
Chalk - gray
|
2.2 ft.
|
|
10
|
Bentonite
|
0.03 ft.
|
|
9
|
Chalk - gray
|
3.9 ft.
|
|
8
|
Limonite and bentonite
|
0.03 ft.
|
|
7
|
Chalk - gray
|
2.8 ft.
|
|
6
|
Limonite
|
0.05 ft.
|
|
5
|
Chalk - gray
|
5.3 ft.
|
|
4
|
Limonite and bentonite (fault)
|
0.05 ft.
|
|
3
|
Chalk - gray
|
4.1 ft.
|
|
2
|
Limonite and bentonite
|
0.05 ft.
|
|
1
|
Chalk - gray
|
9.6 ft.
|
|
