Coffey County

Sec. 2, T. 20 S., R. 16 E
Move to another county

Road Cuts
Measured By Newell, 04/1936

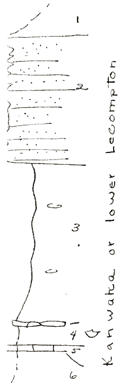

Unit No. Description Thickness
1 Covered interval 25 - 30 ft. up to Beil Limestone
2 Heavy scarf forming sandstone +/- 15 ft.
3 Greenish nodular clay 20 ft.
4 Limy shale, with flat limestone concretions at top and lower 1 ft. filled with chonetes transversalis 2.5 ft.
5 Irregular Buff Limestone with a few brachiopods 0.5 ft.
6 Covered shale

Original Document

The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
