Coffey County Sec. 10, T. 22 S., R. 14 E

Southwest of sec. 10 and Northwest of sec. 15 Measured By Newell, 04/1936

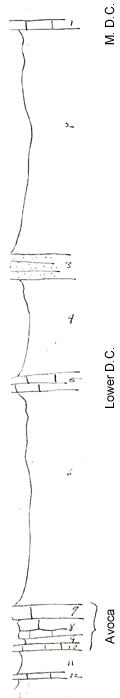

	Unit No. Description Thickness 1 Blocky dense blue limestone 1.5 ft. 2 Mostly maroon shale 32 ft. 3 Sandstone +/- 3 ft. 4 Covered shale, some maroon 14 ft. 5 Borwn to yellow angular limestone with Osagia and shell fragments 2 ft. 6 Shale covered 30 ft. 7 Bluish and buff limestone with large Triticites cf ventricosus, Syringopora, and Campophyllums 2 ft. 8 Earthy gray limestone with a few T cullomensis 2.5 ft. 9 Gray clay shale 0.8 ft. 10 Even gray limestone with T cullomensis 1 ft. 11 Green clay 3 ft. 12 Ocher unfossiliferous shaly limestone (top of Beil) 1 ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
