Coffey County Sec. 13, T. 22 S., R. 14 E

Southeast corner of sec. 13 and Northeast corner of sec. 24 Measured By Newell, 04/1936

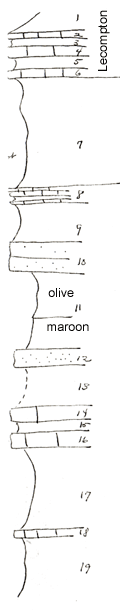

	Unit No. Description Thickness 1 Gray shale   2 Buff limestone filled with very small fusulinids 0.5 ft. 3 Shaly limestone filled with T cull. 1 ft. 4 Irregular buff limestone filled with T cull. 1 ft. 5 Shale, covered 1.5 ft. 6 Even gray limestone filled with T cull. 0.8 ft. 7 Gray clay shale 14 ft. 8 Limy, sandy shale & limestone with mollusks 1 ft. 9 Sandy shale with sandstone at top 5 ft. 10 Heavy irregular buff sandstone 4 ft. 11 Shale, upper 6 ft. olive, lower 4 ft. maroon 10 ft. 12 Brown very calcareous fossiliferous sandstone filled with well preserved clams 2 ft. 13 Covered shale 5 ft. 14 Gray osagia limestone with algal pebbled 2 ft. 15 Nodular shaly covered zone 1 ft. 16 Rusty nodular sandy osagia limestone with mollusks (clams) 2 ft. 17 Gray clay shale filled at base with ch. transv. 10 ft. 18 Drab even limestone 0.7 ft. 19 Fossiliferous limy shale with Myalina subquadrata
