Coffey County Sec. 11, T. 22 S., R. 15 E

Road Exposure Measured By Newell, 04/1936

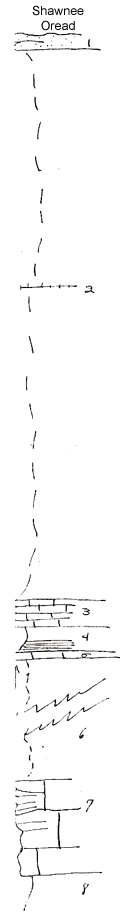

	Unit No. Description Thickness 1 Sandstone remnant   2 Covered clay shale 65 ft. 3 Irregular buff, cryptozoan limestone with brachiopods and sponges +/- 3 ft. 4 Shale, poorly shown, lower half brack 3 ft. 5 Blocky, dense blue limestone with Cryptozoan and fusulinids 0.8 ft. 6 Shale, covered, mostly green to drab 35 ft. 7 Buff massive limestone, lower 3 ft. most massive with brachiopods and T. secalius 11 ft. 8 Gray silty shale with plant debris + 8 ft.   Probably all of #1 and #2 are in the Heumader Shale
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
