Wilson County Sec. 7, T. 27 S., R. 14 E

Roadcuts to Ireland escarpment; bridge across stream Measured By Newell, 8/1938 One of the best exposures of Haskell and Westphalia in county.

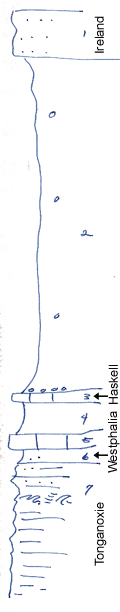

	Unit No. Description Thickness 1 Sandstone, poorly shown 0 ft. 2 Shale, bluish-gray, clayey, has limonite concretions and at the base phosphatic concretions +/- 80 ft. 3 Limestone, dense, brittle, bluish-gray 1.5 ft. 4 Shale, dark gray, clayey, upper 6 in. limy, fossiliferous 7 ft. 5 Limestone, irregular, buff, lower part with Osagia, upper part mottled algal limestone, massive, not very fossiliferous 3 ft. 6 Shale, sandy 3.5 ft. 7 Shaly, sandstone, with 'storm rollers' +/-40 ft.
