Wilson County Sec. 30, T. 30 S., R. 17 E

Measured in stream to west and up the bank to topographic bench in back of barn Measured By H.C. Wagner, 9/27/1953

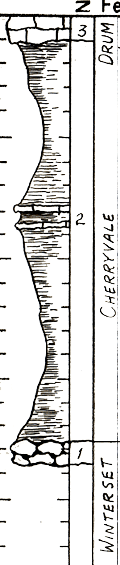

	Unit No. Description Thickness 3 Limestone - medium gray (N5) to medium light gray (N6), very fossiliferous, fragmental, very abundant crinoid fragments, also ramose bryozoans, Cryptozoan?, fenestrate bryozoans +/- 2 ft. 2 Shale - medium gray (N5) to light olive gray (5Y6/1), fissile throughout, unfossiliferous, one inch lenticular gray beds of calcareous segregations occur throughout, one every 2 to 3 feet. 2 inch unfossiliferous limestone 19 ft above base and many thin flaggy limestone beds for next 2 ft. +/- 33 ft. 1 Limestone - very light brownish gray (5YR6/1) to grayish orange (10YR7/4) to medium gray (N5). Hard, irregularly bedded, vertically jointed, joints running N50W. Finely oolitic locally. Very fossiliferous. Contains Myalina, Cryptozoans, and locally a concentration of about 90% small brachiopod valves; also large fenestrate bryozoans and crinoid stems. This limestone is folded into a series of parallel trending small folds trending N18E with vertical amplitude of about 1.5 ft and 12 - 14 ft. from crest to crest. I have found these same folds in fulleys both North and South of here, with the same general trend and aplitude, and have also noted similar irregularities in the Winterset? a few miles east of Neodesha 1.5 ft.
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
