On U.S. Highway 36, 2 1/4 miles west of Highway K-11
Measured By M.K. Elias, 1932
Remarks: II-9. Note: This section probably is entirely in the upper part of the Blue Rapids shale member.
|
|
|
|

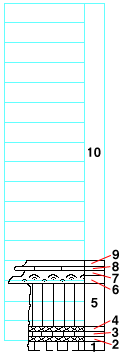

| Unit No. |
Description |
Thickness |
|
10
|
To the base of three Mile limestone member
|
26.5 +/- ft.
|
|
9
|
Shale, gray
|
0.6 ft.
|
|
8
|
Mudstone
|
0.4 ft.
|
|
7
|
Shale, gray
|
0.5 ft.
|
|
6
|
Limestone made largely of calcareous algal structure
|
0.6 ft.
|
|
5
|
Shale, green
|
4.5 ft.
|
|
4
|
Shale, purple
|
0.5 ft.
|
|
3
|
Shale, green
|
0.7 ft.
|
|
2
|
Shale, purple
|
0.3 ft.
|
|
1
|
Shale, green
|
1 ft.
|
|
