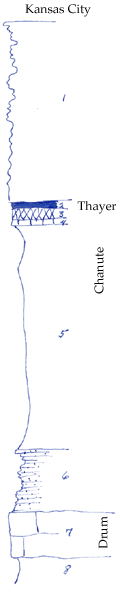

Measured By Newell, 8/1935
|
|
|
|
| Unit No. |
Description |
Thickness |
|
1
|
Platy sandstone, with plant fossils
|
30 ft.
|
|
2
|
Coal
|
1 ft.
|
|
3
|
Underclay
|
2 ft.
|
|
4
|
Yellow, concretionary limestone
|
1 ft.
|
|
5
|
Gray clay shale
|
37 ft.
|
|
6
|
Platy sandstone
|
10 ft.
|
|
7
|
Massive pseuds brecciated limestone filled with bryozoans (fistulyoroides), very uneven top and bottom
|
8 ft.
|
|
8
|
Gray silty shale
|
|
|
Original Document
