Montgomery County

Sec. 26, T. 32 S., R. 14 E
Move to another county

High outlier
Measured By Newell, 8/1935

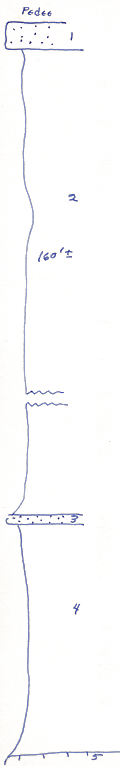

Unit No. Description Thickness
1 Massive hard brown sandstone 3 ft.
2 Bluish-gray clay shale with limonite concretions and very few beds of flaggy hard sandstone +/- 160 ft.
3 Blocky sandstone, makes bench +/- 1 ft.
4 Bluish gray clay shale with large amounts of limonite, contains Treporpira cf sphaerulata, Nuculana bellistriata, Anthraconeilo sp, etc. +/- 30 ft.
5 Stanton limestone

Original Document

The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
