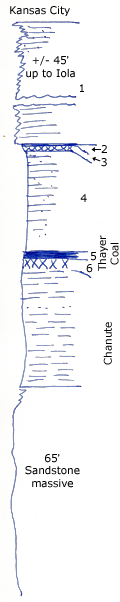

Measured By Newell, 8/1935
|
|
|
|
| Unit No. |
Description |
Thickness |
|
1
|
Platy riffled sandstone, 45 feet up to plain of Iola
|
+/- 45 ft.
|
|
2
|
Coal
|
0.1 ft.
|
|
3
|
Underclay, coaly
|
0.2 ft.
|
|
4
|
Platy sandstone
|
13 ft.
|
|
5
|
Coal
|
0.8 ft.
|
|
6
|
Underclay
|
1 ft.
|
|
7
|
Clay shale with silty layers
|
15 ft.
|
|
8
|
Platy sandstone
|
+/- 3 ft.
|
|
9
|
Massive cross bedded soft sandstone not all shown (base covered)
|
+ 65 ft.
|
|
