Montgomery County

Sec. 11, T. 34 S., R. 16 E
Move to another county

Measured By J.M. Jewett, 6/23/1931
Refer to Notebook No. 31B

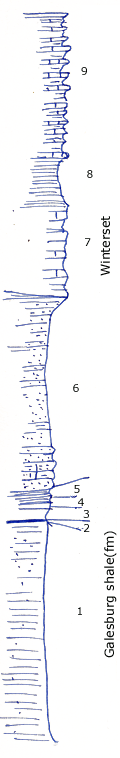

Unit No. Description Thickness
9 Alternating beds of shale and dense blue limestone 16 ft.
8 Shale 5.5 ft.
7 Limestone, not well exposed, fossiliferous, distinct contact below +/- 10 ft.
6 Sandstone and sandy shale, more shaly in upper part, all sandstone is thin bedded, not massive as is sandstone above this section 21 ft.
5 Shale, thin beds, clay 0.1 - 0.2 ft.
4 Shale, blocky 1.1 ft.
3 Shale, clay, yellow 1.3 ft.
2 Coal 0.4 ft.
1 Sandy shale, more sandy in lower part but all is sandy shale and not a sandstone 23 ft.

Original Document

The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
