Montgomery County

Sec. 23, T. 34 S., R. 16 E
Move to another county

Measured By J.M. Jewett, 10/3/1932

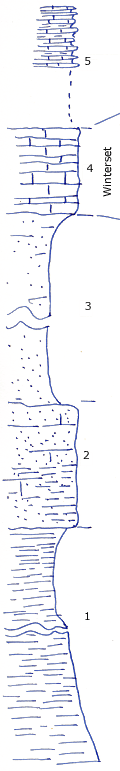

Unit No. Description Thickness
5 Slope with "Kirchoff" flags at top, mostly covered +/- 15 ft.
4 Limestone Winterset +/- 10 ft.
3 Sandstone and sandy shale not well exposed 54 ft.
2 Sandstone and sandy shale, sandstone at top, and sandy shale below 16.2 ft.
1 Clay shale all well exposed 43 ft.
  Winterset base here is 140 feet above Verdigris River
