Labette County Sec. 29, T. 31 S., R. 18 E

Measured By J.M. Jewett, 6/25/1935

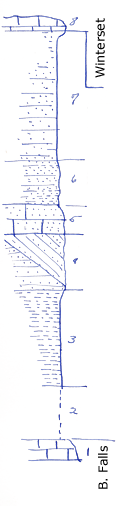

	Unit No. Description Thickness 8 Winterset limestone not well exsposed yet in place lithology indicates Winterset rather than Canville   7 Mostly sandstone some sandy shale 16 ft. 6 Sandstone thin beds 3.4 ft. 5 Sandstone massive 3 ft. 4 Sandstone, cross bedded; thin beds; seen under bridge 7 ft. 3 Clay shale 10.8 ft. 2 Covered 5.4 ft. 1 Limestone - B. Falls - brown granular and crystalline - fairly massive beds 2 - 3 ft.   Note: No. 4 shows unique cross bedding probably true [u]delta conditions[/u]     This and section in 21-31-18 E indicates pinching out of Stark shale and Canville limestone in 1/2 mile to North of this section
