Labette County Sec. 1, T. 32 S., R. 18 E

9 and 10 are exposed 1/4 mile North of remainder of section Measured By J.M. Jewett, 6-24-1935

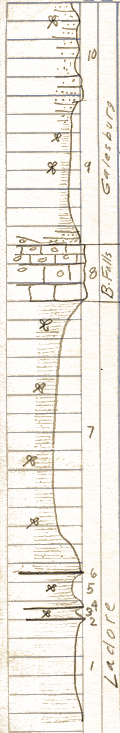

	Unit No. Description Thickness 10 Sandstone 10 - 11 ft. 9 Shale, blocky, limonitic, clay, plant fossils, little sandstone at base 16 - 16 ft. 8 Limestone - B. Falls - characteristic well exposed 6 - 8 ft. 7 Shale, thinner beds in upper part limonite in beds, abundance of plant fossils   6 Coal 0.1 - 0.2 ft. 5 Shale, blocky clay-limonitic, limonite in beds and concretions - plant fossils 4 ft. 4 Coal - with beds of shale 0.2 - 0.3 ft. 3 Shale, blocky, limonitic, plant fossils   2 Coal 0.1 - 0.2 ft. 1 Shale, gray yellow, some limonitic concretions     Note: base of this section is not far above Hertha limestone
Original Document Download an archival scan (file is 4-5 megs in size). The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
