Labette County Sec. 20, T. 33 S., R. 18 E

Pumpkin Creek

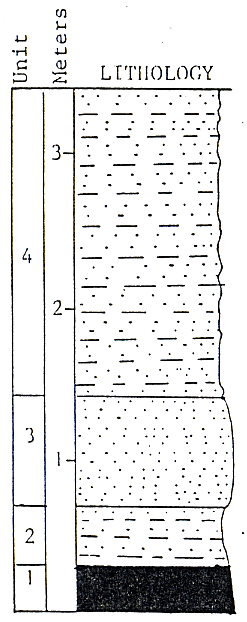

	Unit No. Description Thickness 4 Sandstone; fine-grained; interstratified with micaceous shale partings; small-scale ripple laminations 0.2 - 0.8 inches; contains large plant fragments gradational basal contact. 4.5 - 11 ft. 3 Sandstone; fine grained; with some carbonaceous and micaceous shale partings; flaser bedding; more massive toward top; abruptly gradational basal contact. 2.2 - 4.5 ft. 2 Sandstone; very fine grained; interbedded with medium gray clay shale; wavy to lenticular bedding; sharp base 1 - 2.2 ft. 1 Coal; black 0 - 1 ft.
