0.2 miles South of middle of North line of section on South side of Pumpkin Creek 0.1 miles South of other section in this area
Measured By J.M. Jewett, 1939
|
|
|
|

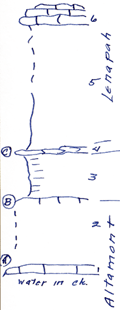

| Unit No. |
Description |
Thickness |
|
6
|
Upper lenapah same as top of other Lenapah sections large blocks
|
? ft.
|
|
5
|
Covered (Fossils as in section little to NE)
|
16 ft.
|
|
4
|
Limestone nodular
|
? ft.
|
|
3
|
Shale (mostly covered) gray
|
5.4 ft.
|
|
2
|
Limestone at top of nearly completely covered interval, part some shale at base limestone at top is light in color
|
+/- 8 ft.
|
|
1
|
Limestone - brown, crystalline
|
1.2 ft.
|
|
