Labette County Sec. 28, T. 34 S., R. 21 E

Roadcut on highway 59, north of Chetopa, Kansas Measured By Wally Howe, 6/21/1949

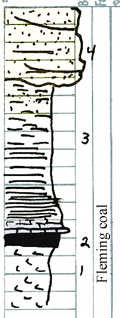

	Unit No. Description Thickness 4 Sandstone, cross-bedded, massive, friable. Base uneven, displacing some part of lower bed. + 4 ft. 3 Shale, calcareous with abundant Marginifera in basal +/- 1 ft. black, hard, above. Leached to "soapstone" in upper 1 - 2 ft. +/- 8 ft. 2 Coal. Thickness varies. 7 - 10 in. 1 Clay, dark gray, silty, with abundant plant remains. 3 - 4 ft.
