Marion County

Sec. 2, T. 22 S., R. 3 E
Move to another county

On North side of highway
Measured By W.A. VerWiebe, 1936

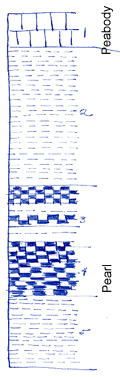

Unit No. Description Thickness
1 Limestone (Peabody) hard blue porus 2 ft.
2 Clay gray, contorted, secondary calcite, soft 8 ft.
3 Claystone, white earthy, thin bedded, layers separated by thin black shale partings 3.5 ft.
4 Claystone, hard, pale brown, lowest is very limey 2.75 ft.
5 Clay like #2 4 ft.
