Marion County

Sec. 8, T. 17 S., R. 2 E
Move to another county

Measured By M.K. Elias, 1935
All divisions above Carlton Limestone

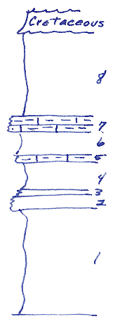

Unit No. Description Thickness
8 Shale, clayey, dark gray 8 ft.
7 Mudstone, splittery 1.5 ft.
6 Shale, gray, splittery 2.3 ft.
5 Mudstone, splittery 0.7 ft.
4 Shale, dark gray, splittery 2.5 ft.
3 Shale, calcareous 0.5 ft.
2 Mudstone, yellowish, splittery 1.5 ft.
1 Shale, dark gray 10 ft.

Original Document

The Archive file you download contains a TIFF image compressed into a ZIP archive. Your browser may be already set up to decompress these files. Commercial software to perform this is available from PKWARE, Inc., the company that invented the format. A web page from a group of people creating shareware or public domain software is available at Info-ZIP. The TIFFs are 150-dpi archival-quality color scans of the original forms and can be viewed by software like Corel PhotoPaint or Adobe PhotoShop.
